ROLLER ROCKER ARM

This part is no longer available.

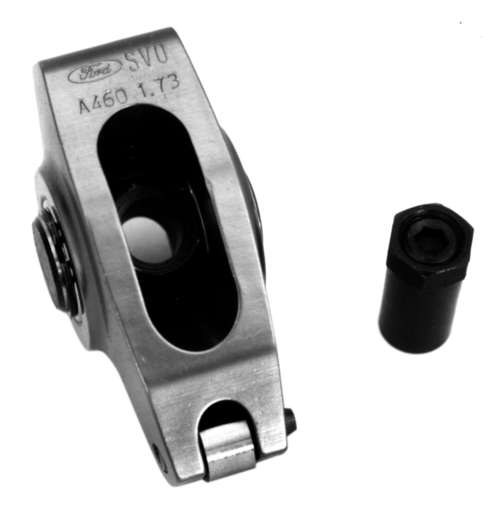

ROLLER ROCKER ARM
M-6564-J351
Instruction Sheet
    M-6564-J351* Same as M-6564-H351* but has a 1.65:1 Ratio.
    PART NUMBER PACKAGE OF (16)PART NUMBER PACKAGE OF (2)APPLICATIONSDESCRIPTIONNOTES
    RATIOMOUNTINGVALVE TYPE
    M-6564-A351*M-6564-AS51*289/302/351W and Ford Racing aluminum cylinder heads M-6049-J3021.60:1StudInlineRequires 3/8" stud, push rod guide plates & hardened push rods. Cast iron ylinder heads require pedestal machining.
    M-6564-D351*M-6564-DS51*1.70:1StudInline
    M-6564-K351*N/A289/302/351 Ford Racing aluminum cylinder head M-6049-Z3041.60:1StudInlineRequires 7/16" stud, push rod guide plates & hardened push rods. Cast iron cylinder heads require pedestal machining.
    M-6564-B351*M-6564-BS51*(1)(3)302/351W — 1978 and later with production heads. Cast iron and aluminum GT-40 heads1.60:1Bolt OnInlineFor stock production cast iron cylinder heads with hydraulic non-adjustable valve train. Does not require guide plates, hardened push rods or pedestal machining. Includes pedestal inserts & bolts.
    M-6564-E351*(1)(3)M-6564-ES51*(1)1.70:1Bolt OnInline
    M-6564-A50*(1)(2)302/351W — 1978 and later with production heads. Cast iron and aluminum GT-40 heads1.70:1Bolt OnInlineSame as "Cobra" 5.0L Mustang. These rocker arms have beefy trunnions for extra long life. Die cast aluminum construction.
    M-6564-F351*N/AM-6049-N351/N352 "Sportsman" head.1.65:1StudInline7/16" stud mount intake rocker with .150" offset pushrod cup (pkg. of 16).
    M-6564-G351* (Exhaust Only)N/AM-6049-N351/N352 "Sportsman" head.1.50:1StudInline7/16" stud mount rocker (pkg. of 8).
    M-6564-H351* (Intake Only)N/AM-6049-N351/N352 "Sportsman" head.1.50:1StudInline7/16" stud mount rocker with .150" offset pushrod cup (pkg. of 8).
    M-6564-C351*M-6564-CS51*351C/351M/400 1973 and later 429/460 production cylinder heads.1.73:1Bolt OnCantedFor stock production canted valve cylinder heads with hydraulic non-adjustable valve train. Does not require guide plates, hardened push rods or pedestal machining. Includes pedestal inserts & bolts.
    M-6564-A460*M-6564-AS60*351C/351M/400 302 BOSS/429/460, 429 CJ/SCJ and Ford Racing high port aluminum cylinder heads.1.73:1StudCantedFor canted valve cylinder heads. Requires 7/16" stud, push rod guide plates, hardened push rods. Some cast iron cylinder heads require pedestal machining.
    NOTES:
    (1) The M-6564-B351 and -E351 bolt-on roller rocker arms will not clear the stamped rocker cover on standard 5.0L EFI engines. "Taller" valve covers, such as the production 5.0L EFI HO die-cast aluminum cover or Ford Racing chrome cover M-6582-D302, can be used if the baffle is modified in the RH cover. The M-6582-E302 polished aluminum valve cover will clear all rocker arms and stud girdles, but will not fit under the EFI manifold unless a 1" spacer M-9486-A53 is used between the upper and lower sections of the intake. M-6582-E302 will not fit 1994-95 Mustang or 1990-93 T-Bird.
    (2) Serviced individually from your Ford or Lincoln-Mercury dealer.
    (3) Rocker channels not included.
Part Type
Engine: Valves / Springs
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
11.5" x 2.75" x 20.75"
Package Weight
4.1 lb(s)
UPC Code
756122071847
Country of Origin
United States
