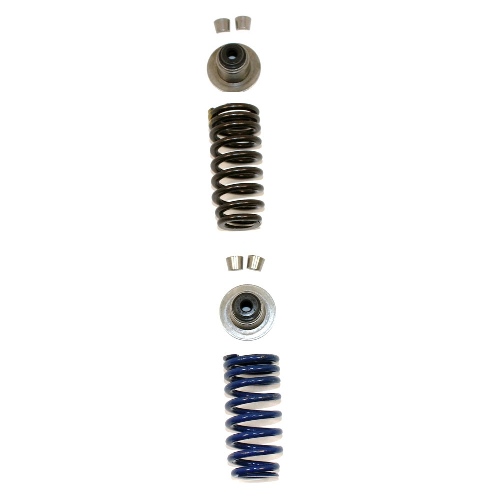

5.2L COYOTE VALVE SPRING KIT

5.2L COYOTE VALVE SPRING KIT
M-6513-M52
Retail
$185.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
  • Fits 5.2L Coyote Cylinder Heads
  • This is the production 5.2L valve spring and hardware
  • Will fit not 5.0L Coyote cylinder heads
  • Kit includes the following
    • 9L8E-6514-AA   VALVE SPRING RETAINER – Quantity 32
    • F53E-6518-AB   VALVE SPRING RETAINER KEY – Quantity 64
    • GR3E-6513-AA  INTAKE VALVE SPRING (BLUE) – Quantity 16
    • GR3E-6513-BA  EXHAUST VALVE SPRING (ORANGE) – Quantity      16
    • GR3E-6A517-AA          VALVE STEM SEAL – Quantity 32
Part Type
Engine: Valves / Springs
Warranty Availability
Not Available
Packaged Dimensions
8.5" x 7.5" x 10.75
Packaged Weight
5.45 lb(s)
UPC Code
756122004579
Catalog Page Number
139
Country of Origin
Mexico
