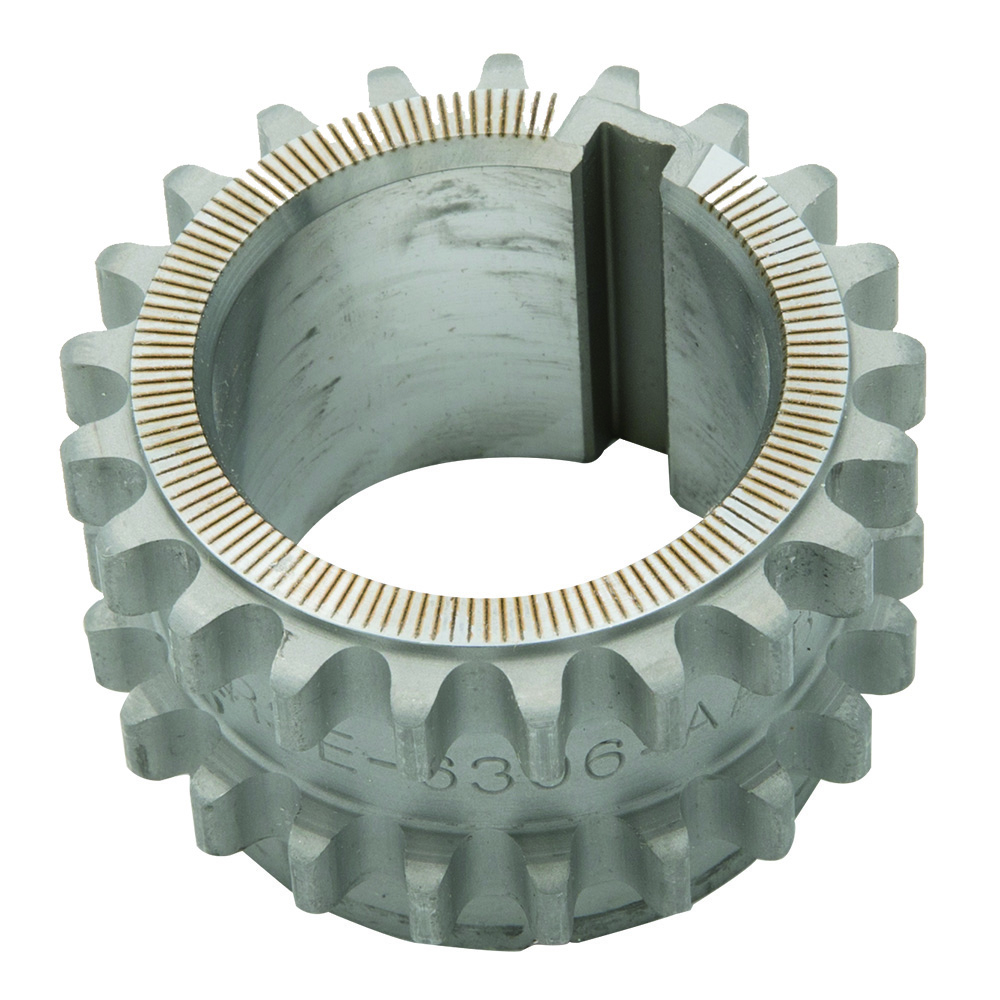

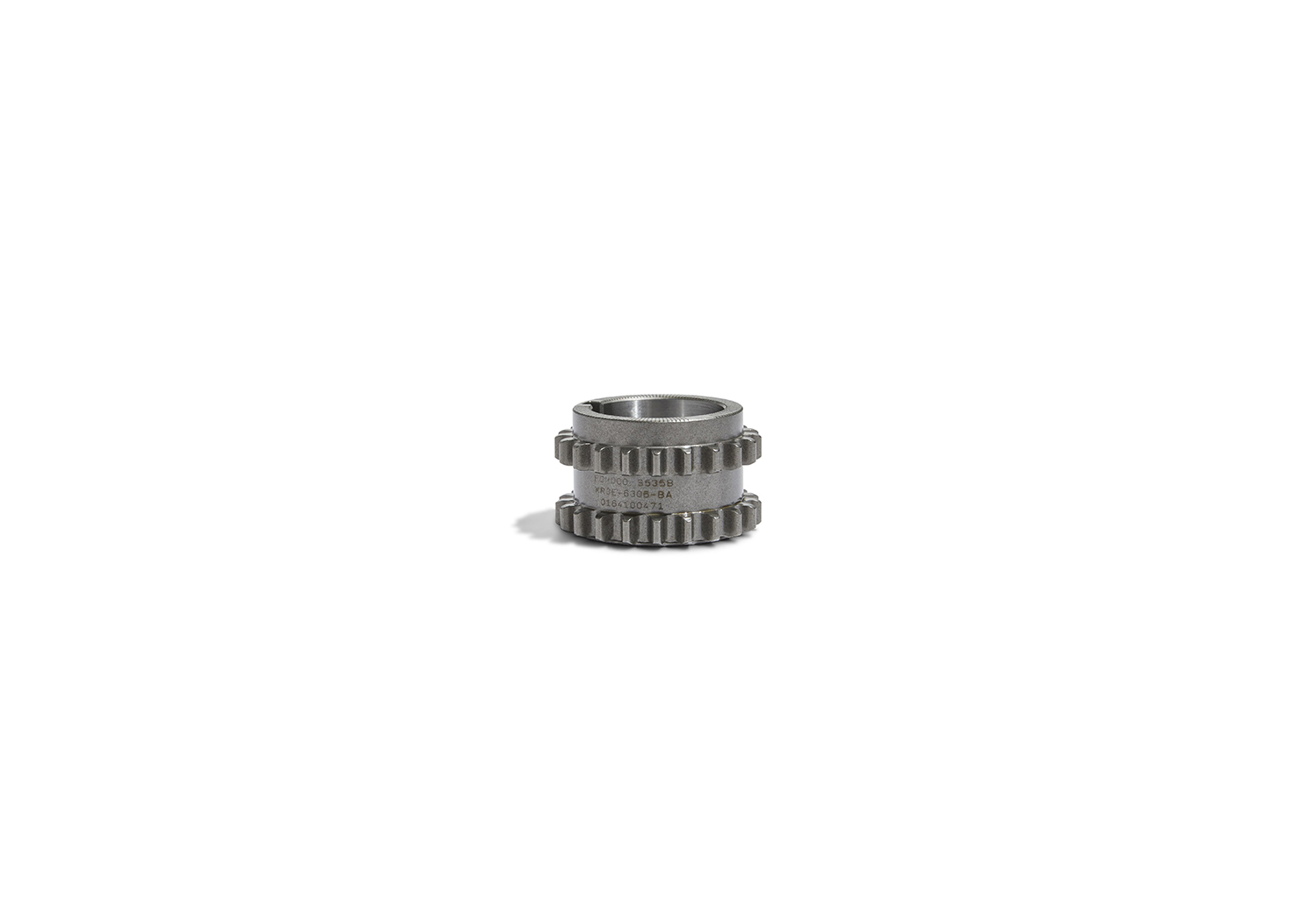

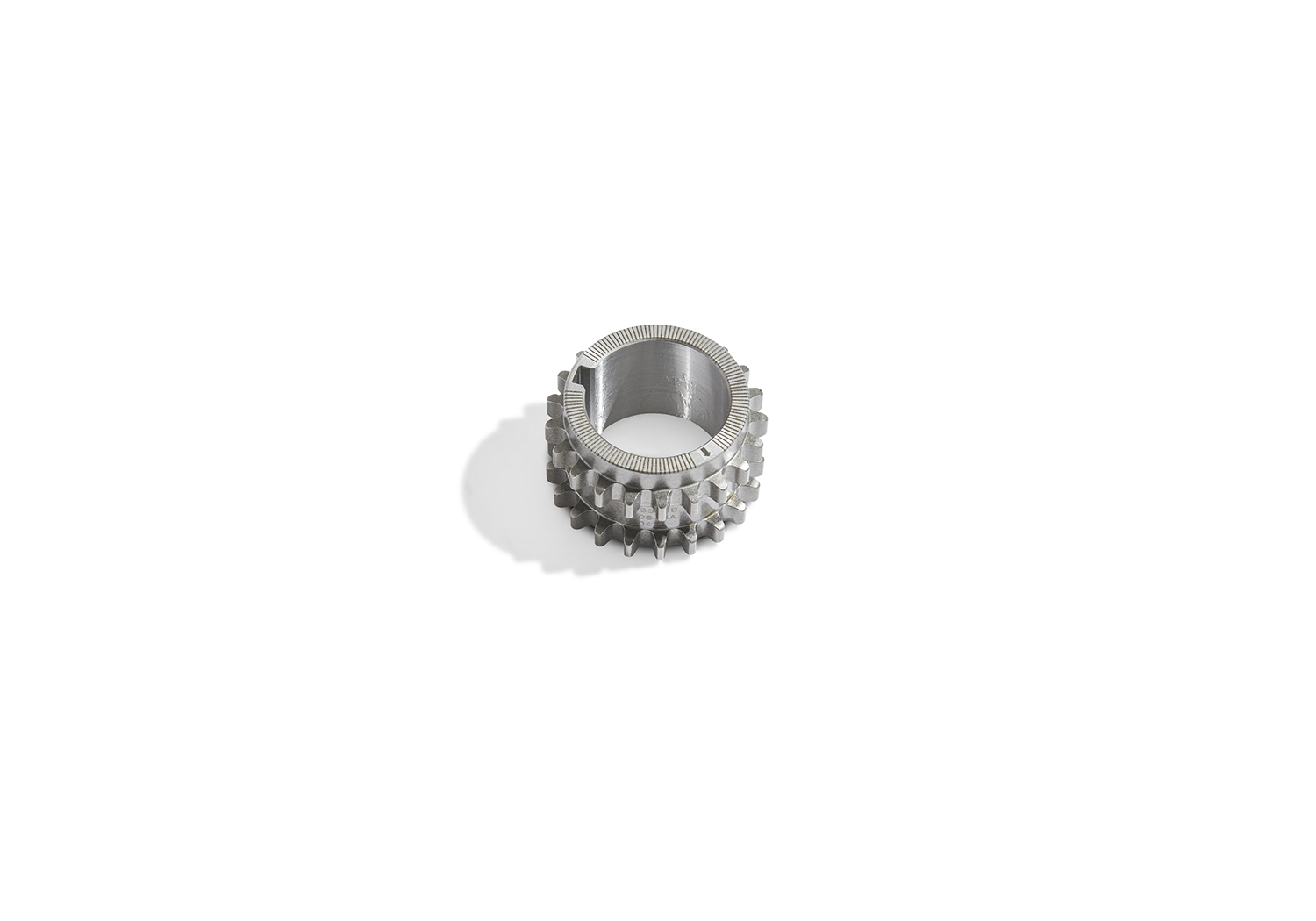

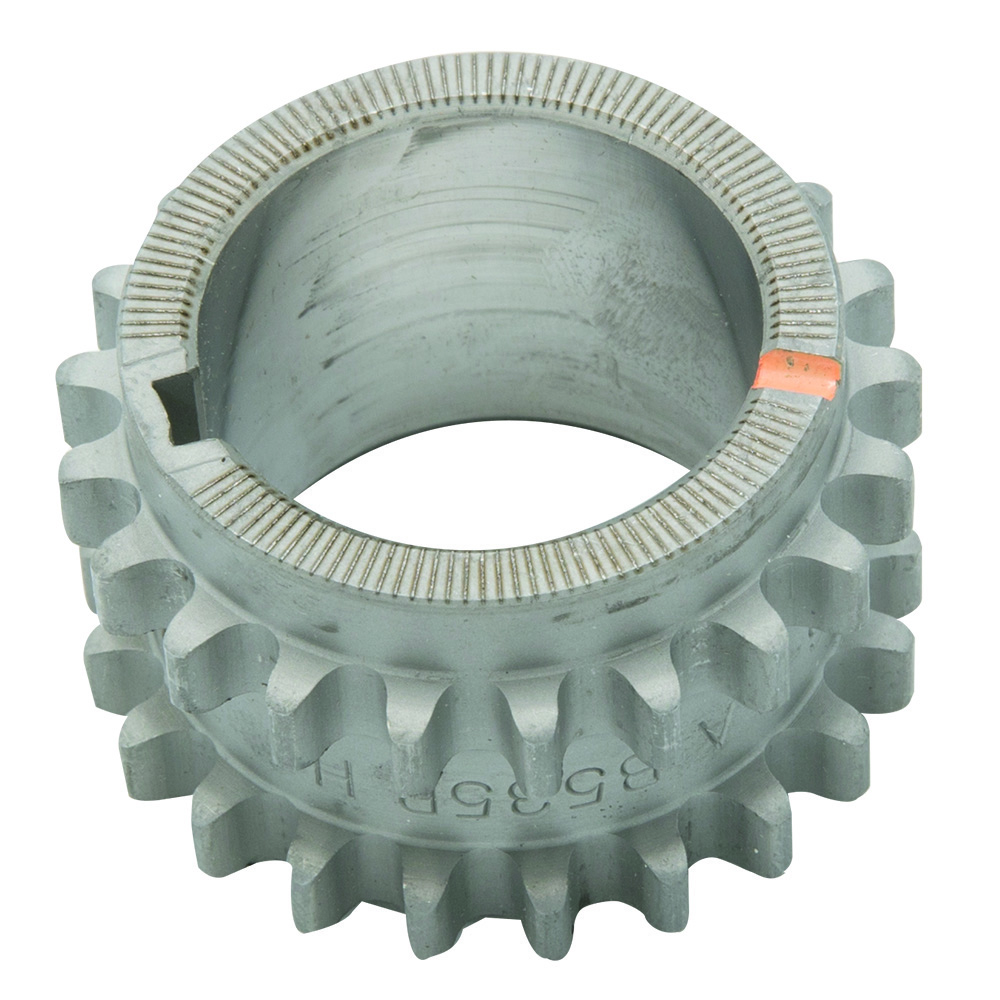

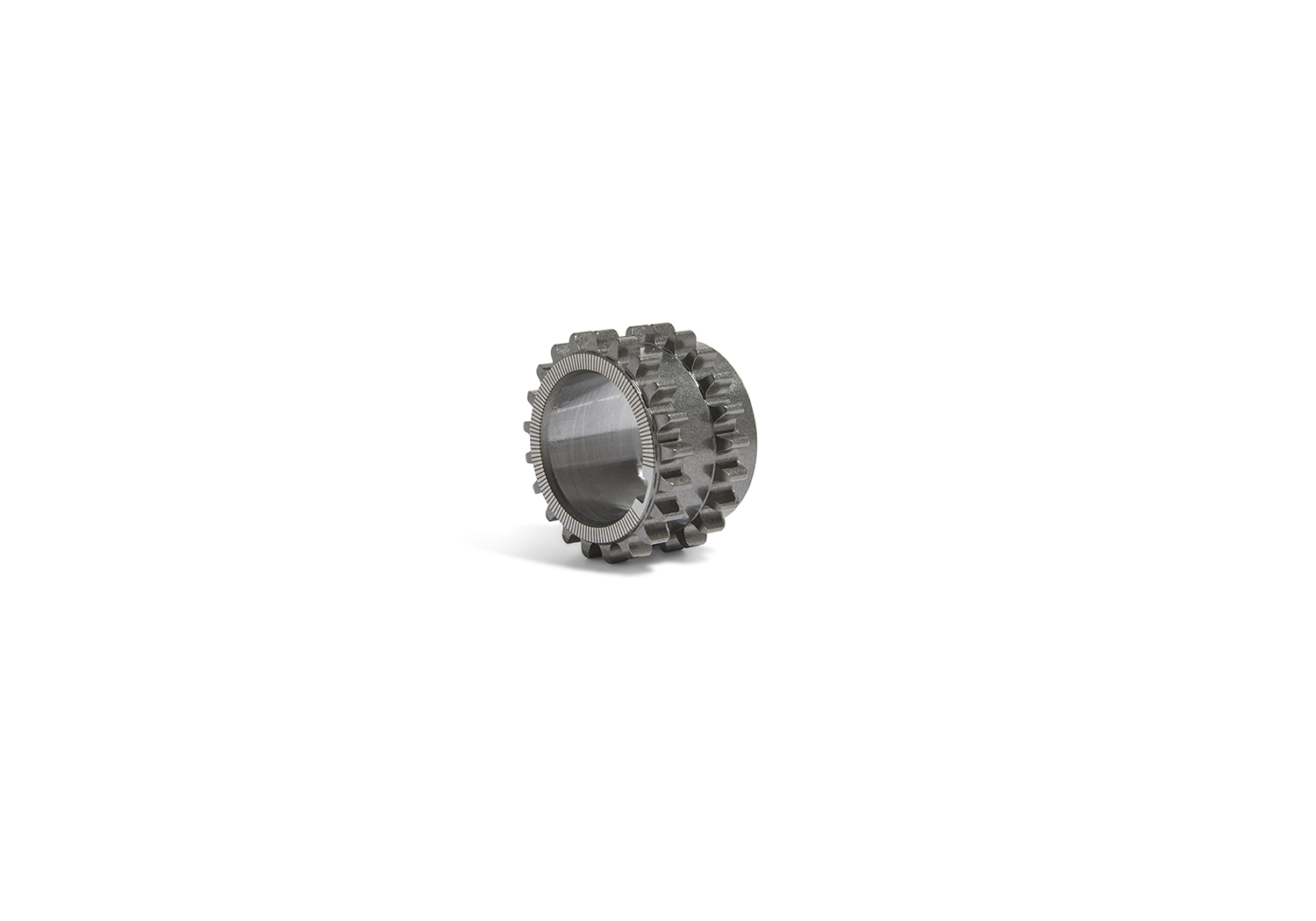

This crankshaft sprocket is designed for race applications. This forged steel crankshaft sprocket is approximately 5x stronger than the factory powdered metal sprocket found on 2015-2017 5.0L engines and offers enthusiasts peace of mind. The factory powdered metal sprocket works effectively in stock applications but when additional horsepower, RPM, and/or the stress caused by belt mounted power adders or accessories are added-this sprocket can help to avoid a costly rebuild.

  • 2015-2017 Mustang GT 5.0L
  • 2015-2018 Mustang GT350 5.2L
  • 2015-2018 F-150 5.0L
  • Produced by OEM manufacturer to minimum allowable tolerances
  • Complements billet oil pump gears found here M-6600-M50A
Part Type
Engine: Timing Drive Related
Warranty Availability
Not Available
Packaged Dimensions
3.5" x 1.5" x 3.5
Packaged Weight
0.35 lb(s)
UPC Code
Country of Origin
United States
