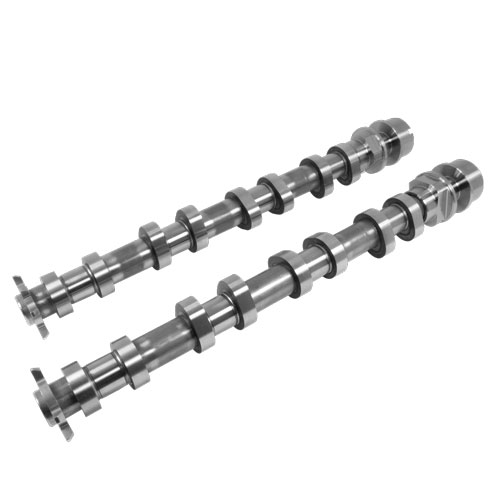

2012-2013 BOSS 302 EXHAUST CAM SET FOR COYOTE 5.0L
This part is no longer available.
M-6550-M50BEXH
Instruction Sheet
Not Available
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
- Higher lift and longer duration for increased engine performance
- 13MM lift/290 degree duration (stock 11MM lift/263 degree duration)
- Compatible with M-6049-M50BR and M-6050-M50BR Mustang Boss 302 cylinder head.
- Will work with Mustang GT 5.0L 4V Ti-VCT cylinder head with modification for rocker arm clearance
- Requires use of Boss 302 valve spring kit M-6513-M50BR
- The cams are used on the 2013 Cobra Jet naturally aspirated engine
- Use with long tube headers for optimum performance gains
- Custom calibration required
- Sold as a pair of camshafts
-
5.0L Coyote Engine Camshaft Timing Recommendations
Part Type
Engine: Cam/Tappets/Pushrods
Warranty Availability
Not Available
Package Dimensions
6" x 6.25" x 28"
Package Weight
17 lb(s)
UPC Code
756122131053
Country of Origin
United States
