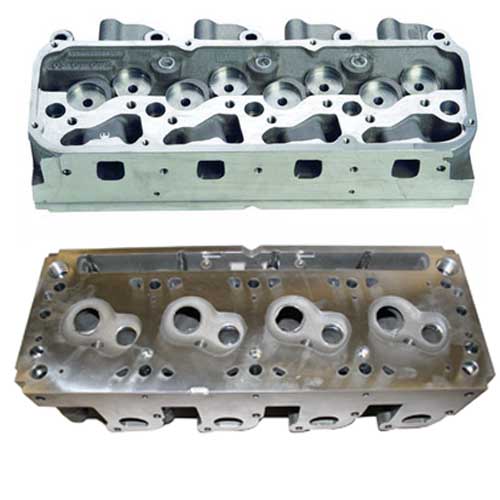

HIGH-PORT NASCAR HEAD
This part is no longer available.
WARNING:This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
This cylinder head is no longer offered by Ford Performance.
This cylinder head is available from SRI Performance:
- Fits 5.0L and 5.8L Ford Performance blocks
- Raised intake and exhaust ports
- Used primarily in NASCAR and ARCA racing
- Intake and exhaust runners raised .400" over Yates C3 head
- Capable of 400 CFM intake, 267 CFM exhaust
- Accepts intake valves up to 2.180 diameter, exhaust valves up to 1.625 diameter
- Integral rocker pad for greater stiffness
- Cylinder head comes semi-finished. Pushrod holes, Combustion chamber and ports, unfinished
- Intake manifold mounting bolt holes 90-degrees to mounting flange
Engine: Cylinder Heads
9.25" x 7.5" x 20.5"
