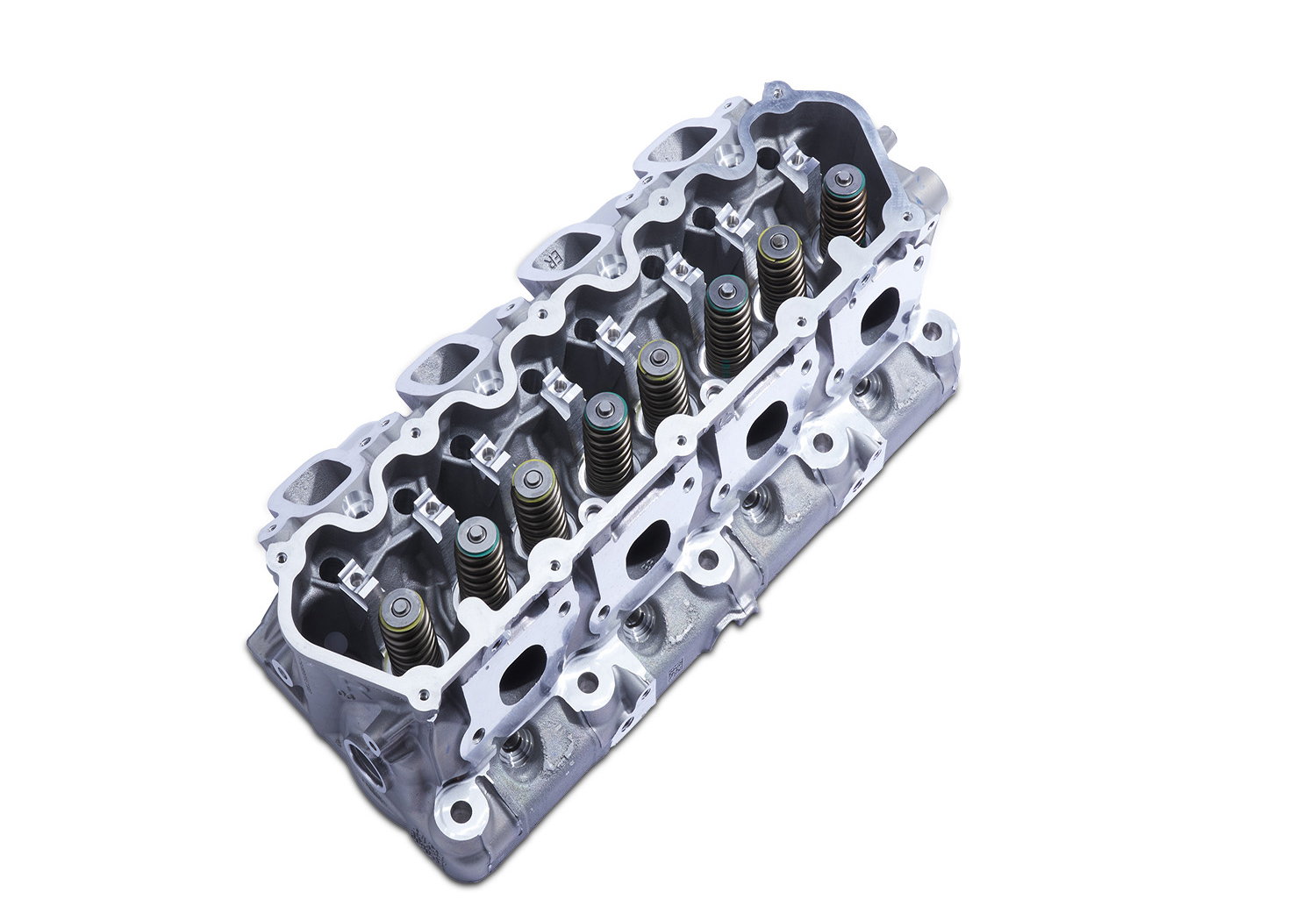

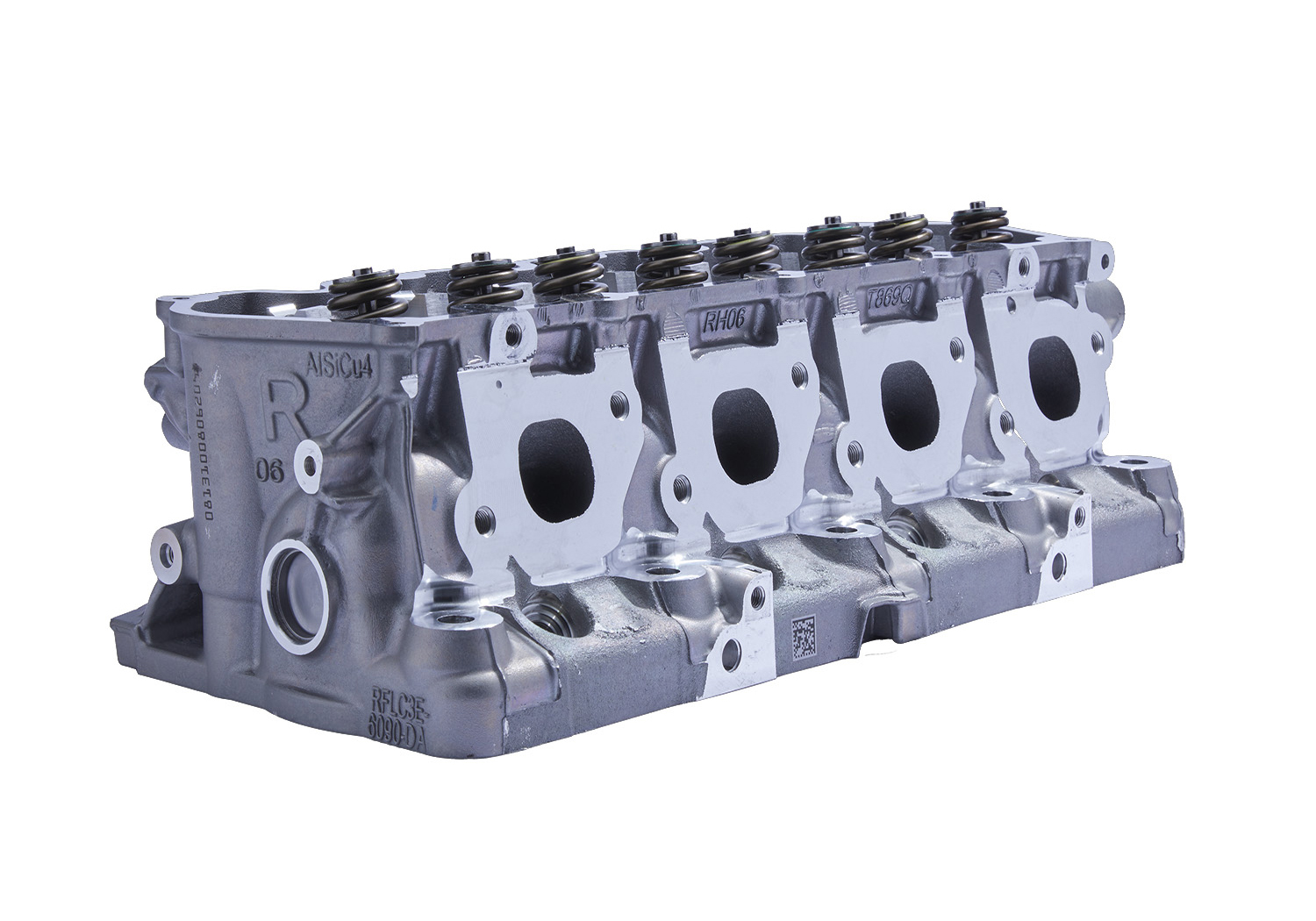

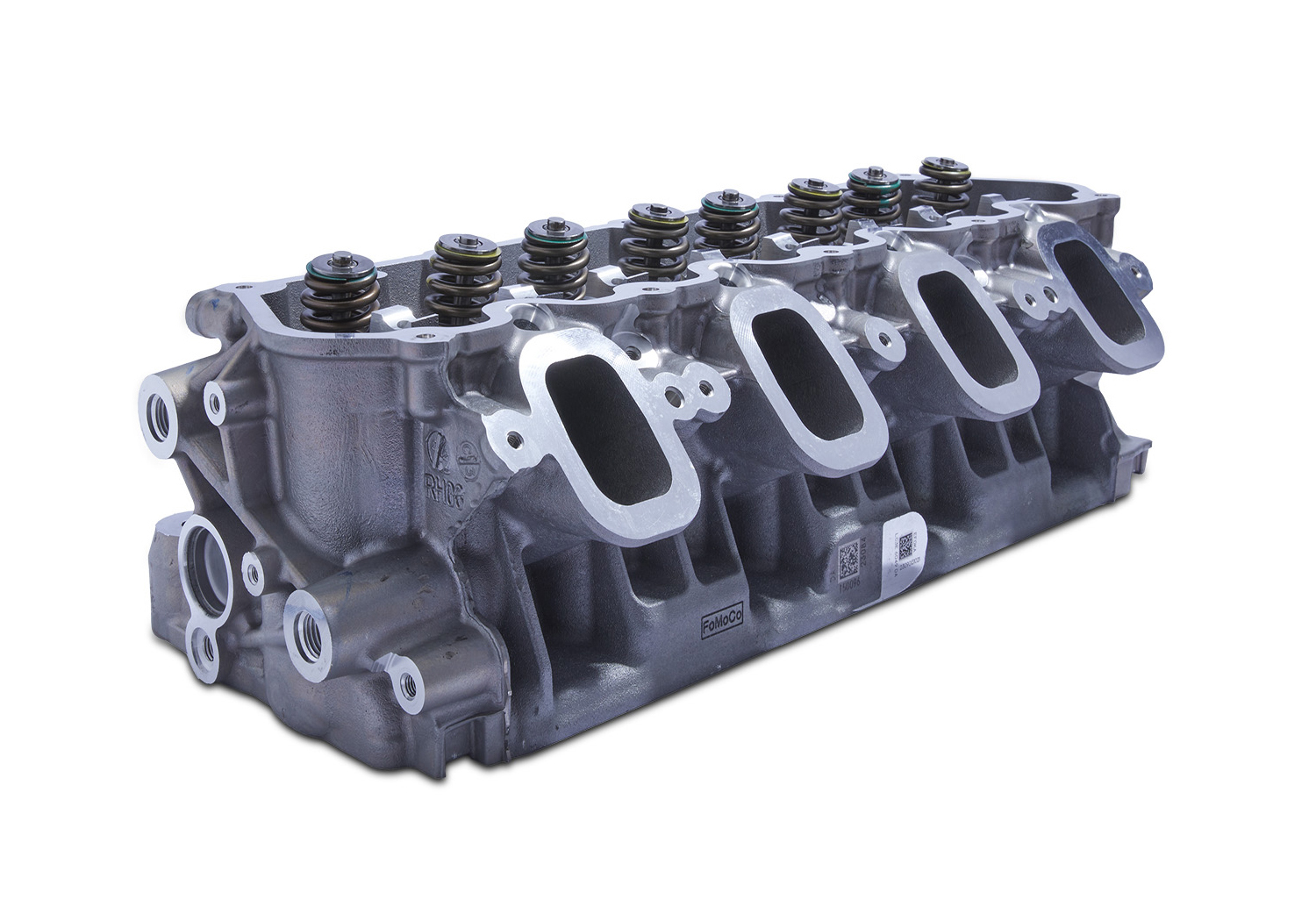

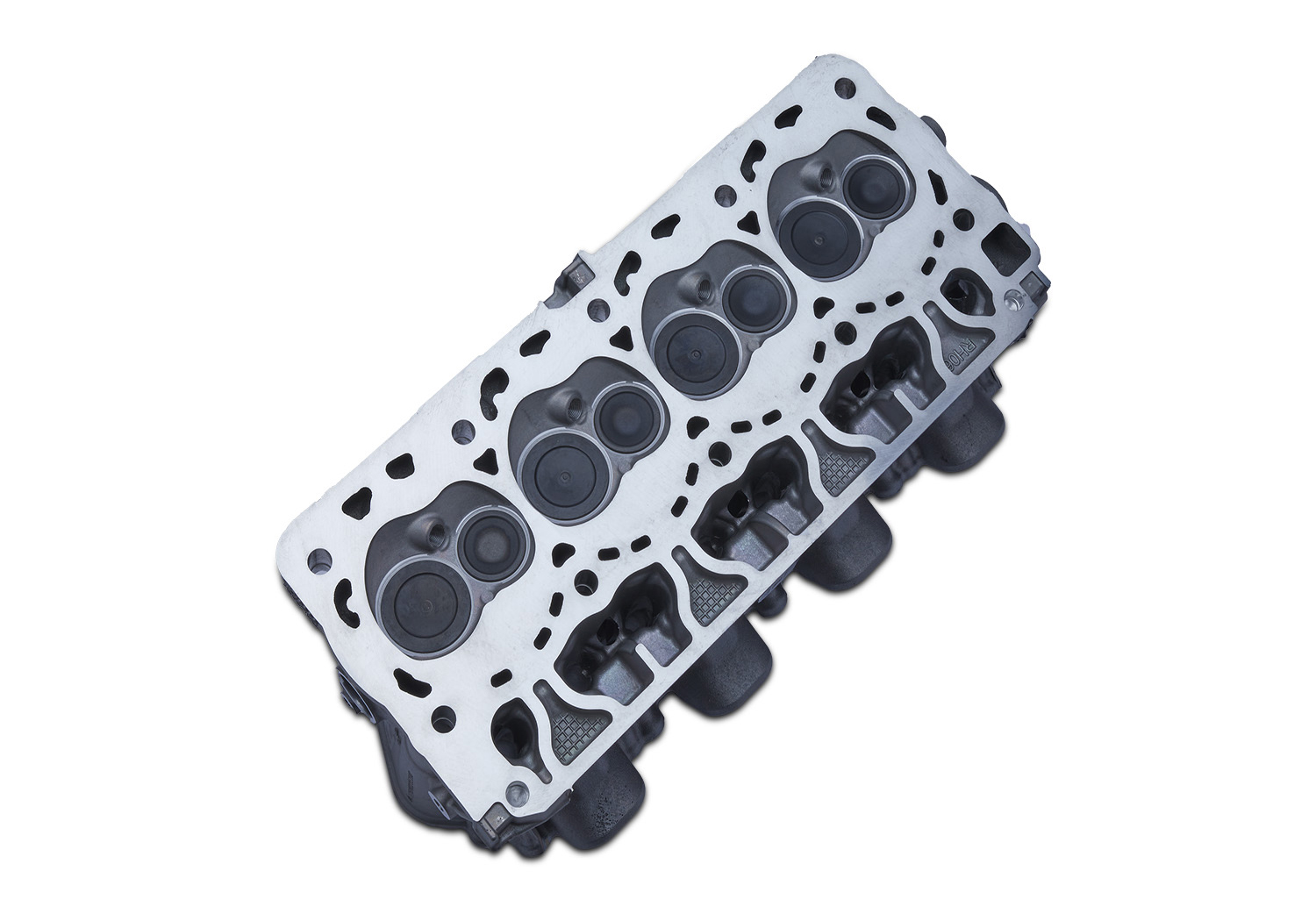

7.3L RH CYLINDER HEAD ASSEMBLED

Proudly Made in Canada
 Genuine Ford OE production Right side cylinder head for 7.3L gasoline engine.
  • Cast aluminum
  • 62.4 cc combustion chamber
  • Production valve springs
  • Valve stem diameter: 8 mm
  • Intake valve diameter: 55.13 mm
  • Intake valve seat angle: 45 degrees
  • Exhaust valve diameter 42.53 mm
  • Exhaust valve seat angle: 50 degrees
Part Type
Engine: Cylinder Heads
Instruction Sheet
Warranty Availability
Not Available
Packaged Dimensions
12.5" x 11" x 22.5
Packaged Weight
41 lb(s)
UPC Code
756122014684
Country of Origin
Canada
