2016 COBRA JET SUPERCHARGED 5.0L COYOTE ENGINE

This part is no longer available.
2016 COBRA JET SUPERCHARGED 5.0L COYOTE ENGINE
M-6007-SCJ16
Instruction Sheet
Not Available
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
WARNING: Cancer http://www.p65warnings.ca.gov.
Proudly Made in the USA
  Engine used in the 2016 Mustang Cobra Jet

LIMITED SUPPLY!!!!!

  • Supercharged Ford Modular V8, 5.0-liter (302 cubic inches) displacement
  • Built from Aluminator crate engine - M-6007-A50SCA
    • 92.2mm bore x 92.7mm stroke
    • 9.5:1 compression ratio
    • Forged steel crankshaft
    • Billet steel gerotor oil pump
    • Mahle forged and anodized pistons with Grafal® coated skirts
    • Manley H-beam connecting rods with ARP 2000 bolts
  • Unique Cobra Jet hardware:
    • 2.9L Whipple front entry supercharger kit - P/N CM-6066-SCJ16 (kits and service parts available from Whipple separately, mechanical throttle body for standalone EFI available from Whipple separately)
    • 95lbs/hr DeatschWerks injectors - P/N 17U-00-0095-8
    • Aeromotive fuel rail kit - P/N  CM-6F792-SCJ16
    •  SFI-approved ATI  crank damper - P/N  918048 w/ 916121 shiv kit
    • Watson Racing alternator relocation kit - P/N  WR-ALTRELOBRKT
    • PAC valve springs - P/N TVS 1733, PAC 1234 recommended as alternative for service

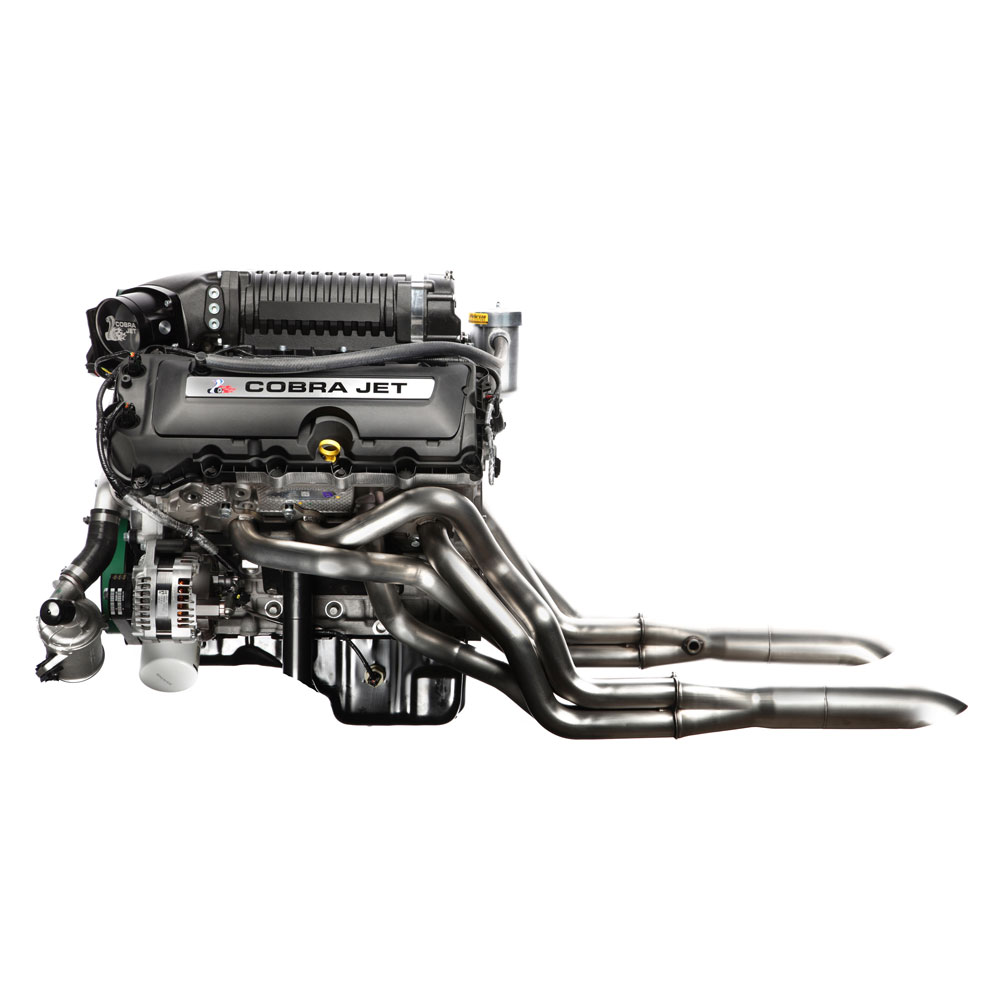

  • Electric water pump M-8501-M50CJ16 sold separately - shown in photo but not included
  • Headers sold separately by American Racing Headers - P/N  CM-9430-SCJ16  - shown in photo but not included
  • Photo and Specs may vary
    • Note: The 2016 Cobra Jet is run with a 2014 PCM and this engine is equipped with 2014 level cam phasers and throttle body sensors. Can be used with Controls Pack M-6017-A504VA modifications and calibration required. Not compatible with 2015-17 engine management systems.

Part Type
Engine: Complete Engines
Warranty Availability
Not Available
Package Dimensions
36.5" x 44" x 36.5"
Package Weight
594 lb(s)
UPC Code
756122002896
Country of Origin
United States
