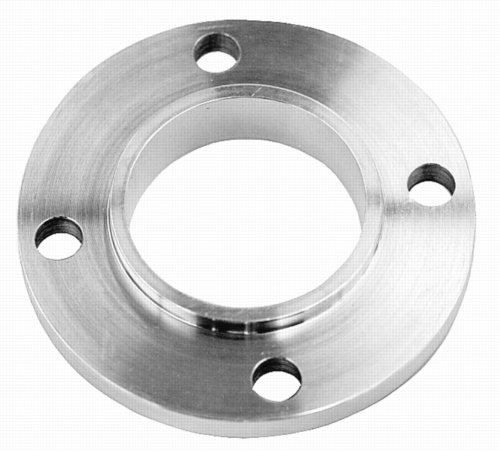

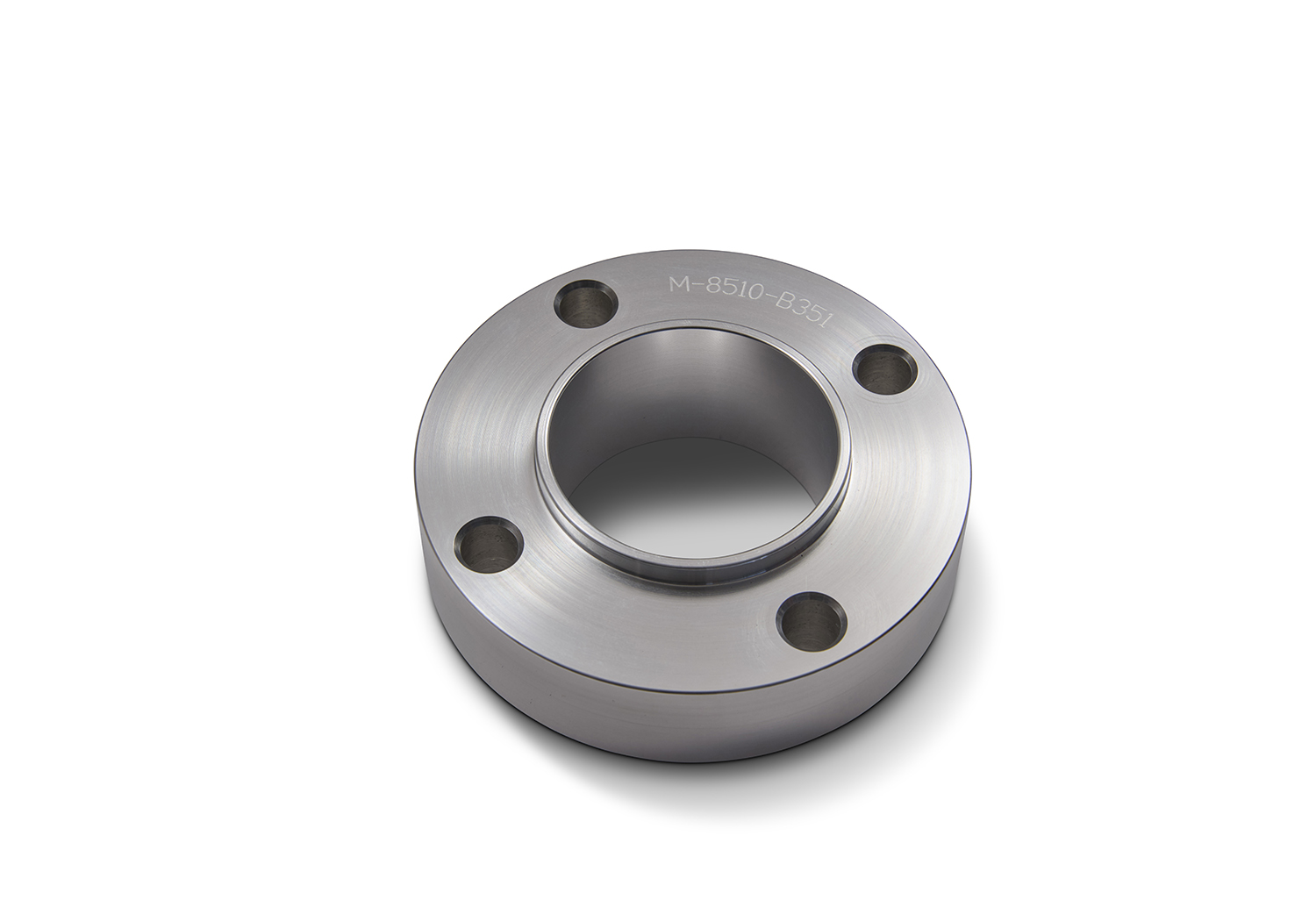

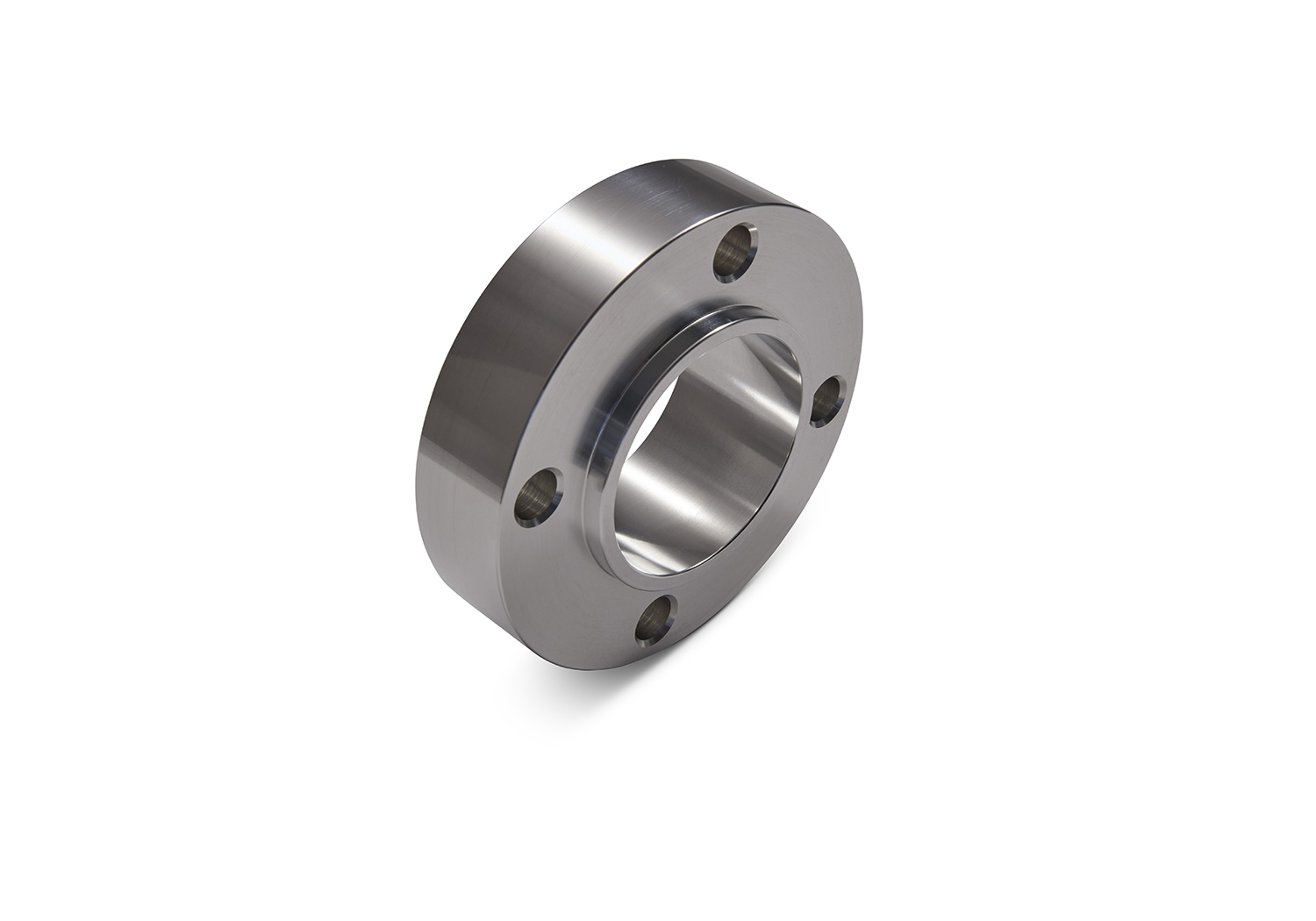

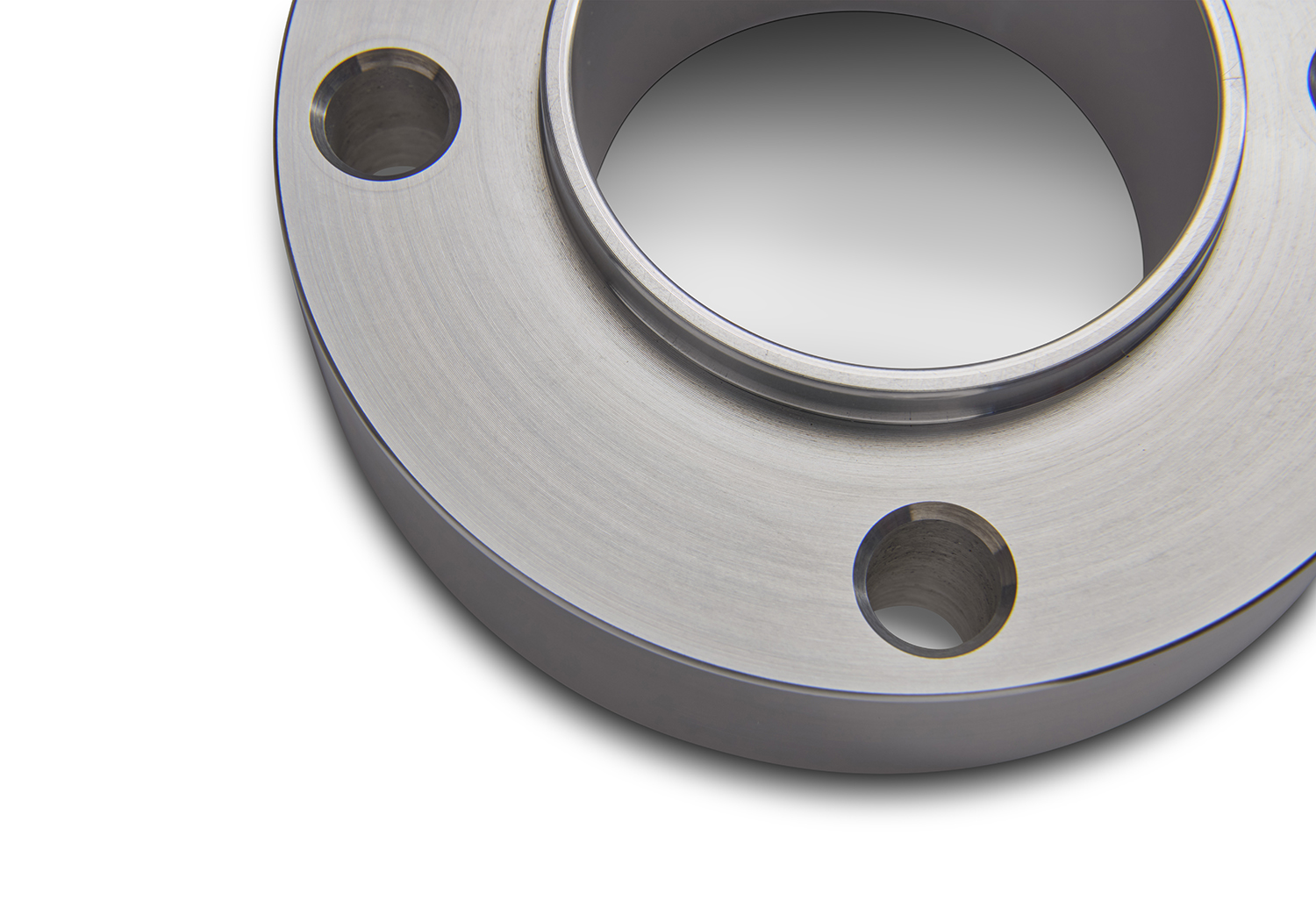

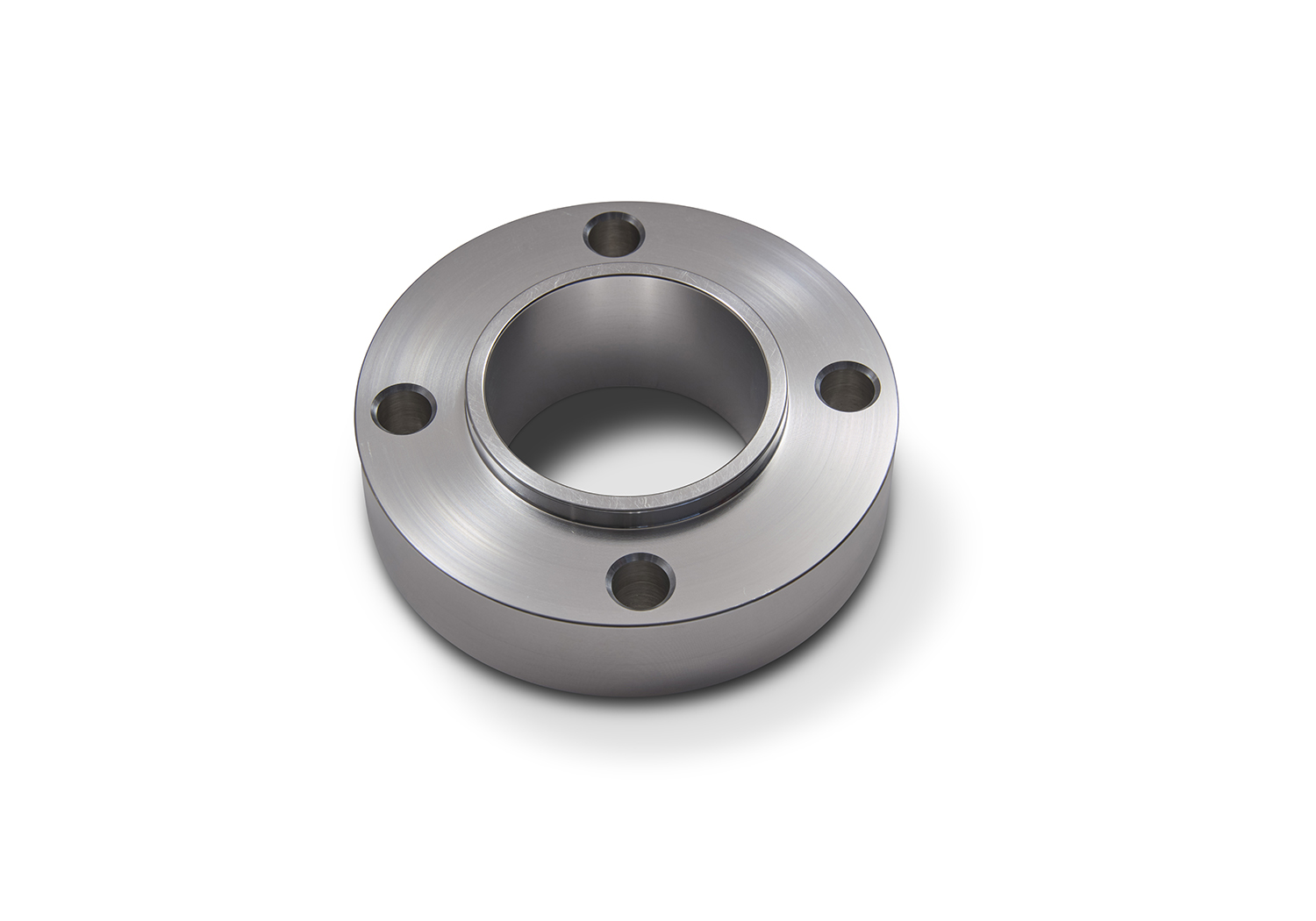

302/351W CRANKSHAFT PULLEY SPACER - 0.950"
Use the following chart to select the proper crankshaft pulley spacer to use with Ford Performance M-6316-C351/A50/D302 crank dampers to achieve proper belt alignment on late model 302 and 351 Windsor engines:
PART NUMBER ENGINE CRANK PULLEY BOLT PATTERN SPACER THICKNESS M-8510-A351 302/351W 4 0.350" M-8510-B351 302/351W 4 0.950" M-8510-C351 302/351W 4 0.875" M-8510-D351 302/351W 4 0.909"
Note: Early 3-bolt crank pulleys generally bolt directly to the damper with flanged pulley pilot (damper is drilled for 3- and 4-bolt patterns). Pulley alignment should be checked and any misalignment corrected with the proper thickness spacer.
5.25" x 5.25" x 1.25
