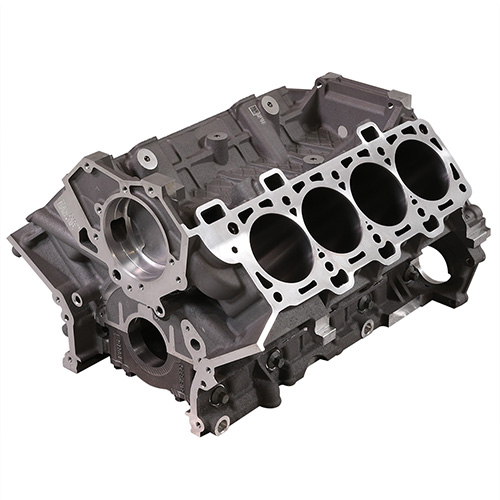

5.2L "GEN 3" COYOTE ALUMINUM ENGINE BLOCK

Proudly Made in Canada
  • Upgraded version of previous Ford Performance M-6010-M52 and M-6010-M52A 5.2L Coyote Aluminum Cylinder Blocks
  • Features higher flow oil squirters to provide added piston cooling
  • Rod bolt path is clearance machined in crankcase of block
  • Improved high-performance casting of the Coyote block with improvements to support higher horsepower engine builds
  • Utliizes Longer (187mm) 12 mm cylinder head bolts to provide greater clamping force (requires longer Head Bolt Kit - M-6067-M501280, or M-6067-M52B head changing kit)
  • Improved crankcase windage
  • 94.0 mm bore
  • Water jacket below cylinder bore has been updated to add more material for strength
  • The intake side of the bore at the deck surface includes a cast-in brace to improve strength of the cylinder wall and head gasket sealing
  • Block features plasma transferred wire arc spray weld liner coating
  • Liner coating provides improved durability and heat transfer, reduced friction, and a weight savings compared to previous 5.0L Mustang GT aluminum blocks
  • Cylinder liner coating does not require unique piston rings or piston material
  • Cylinder bores are finish-honed and ready to assemble
  • All block features are finish-machined including head deck and crank bore

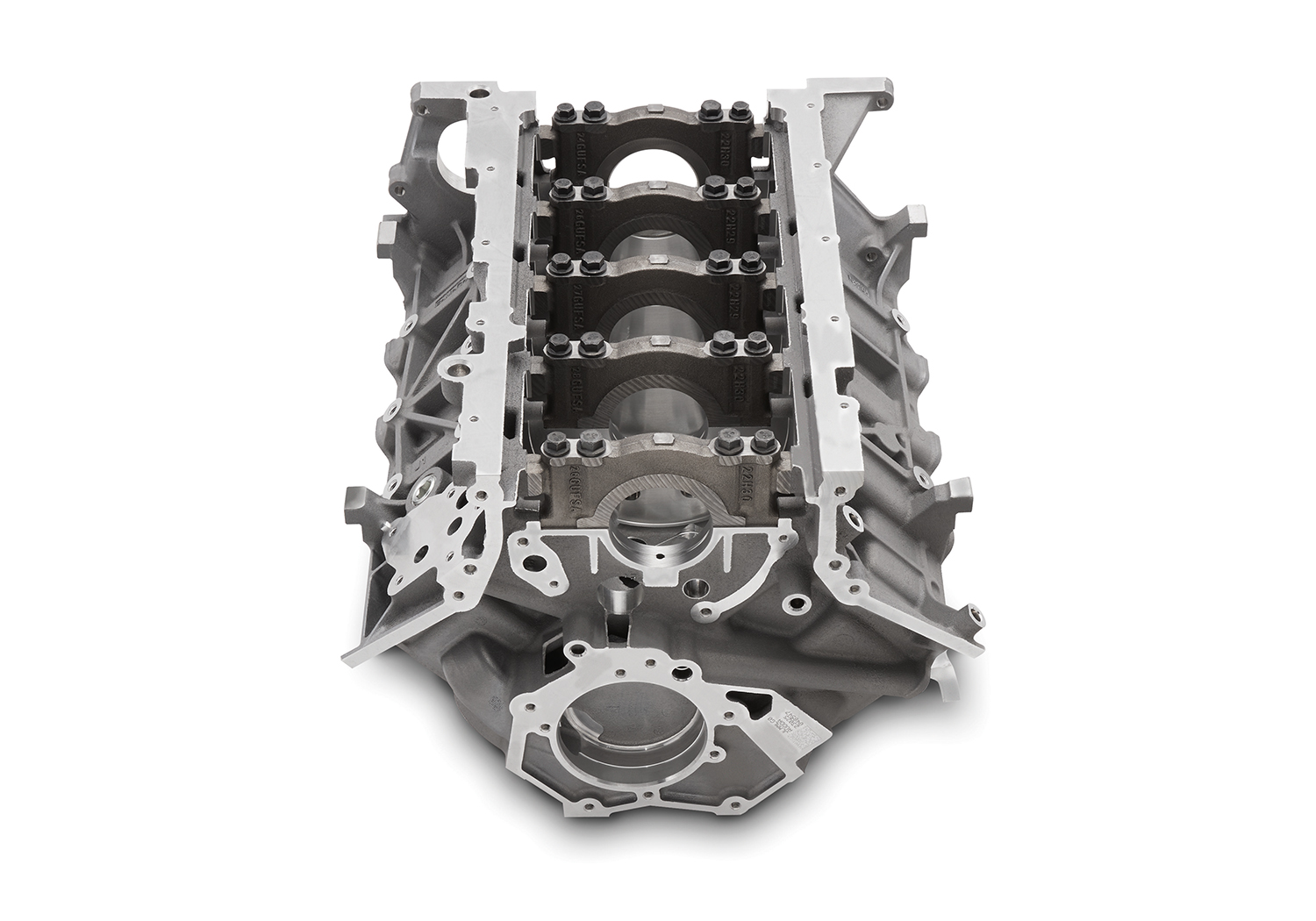

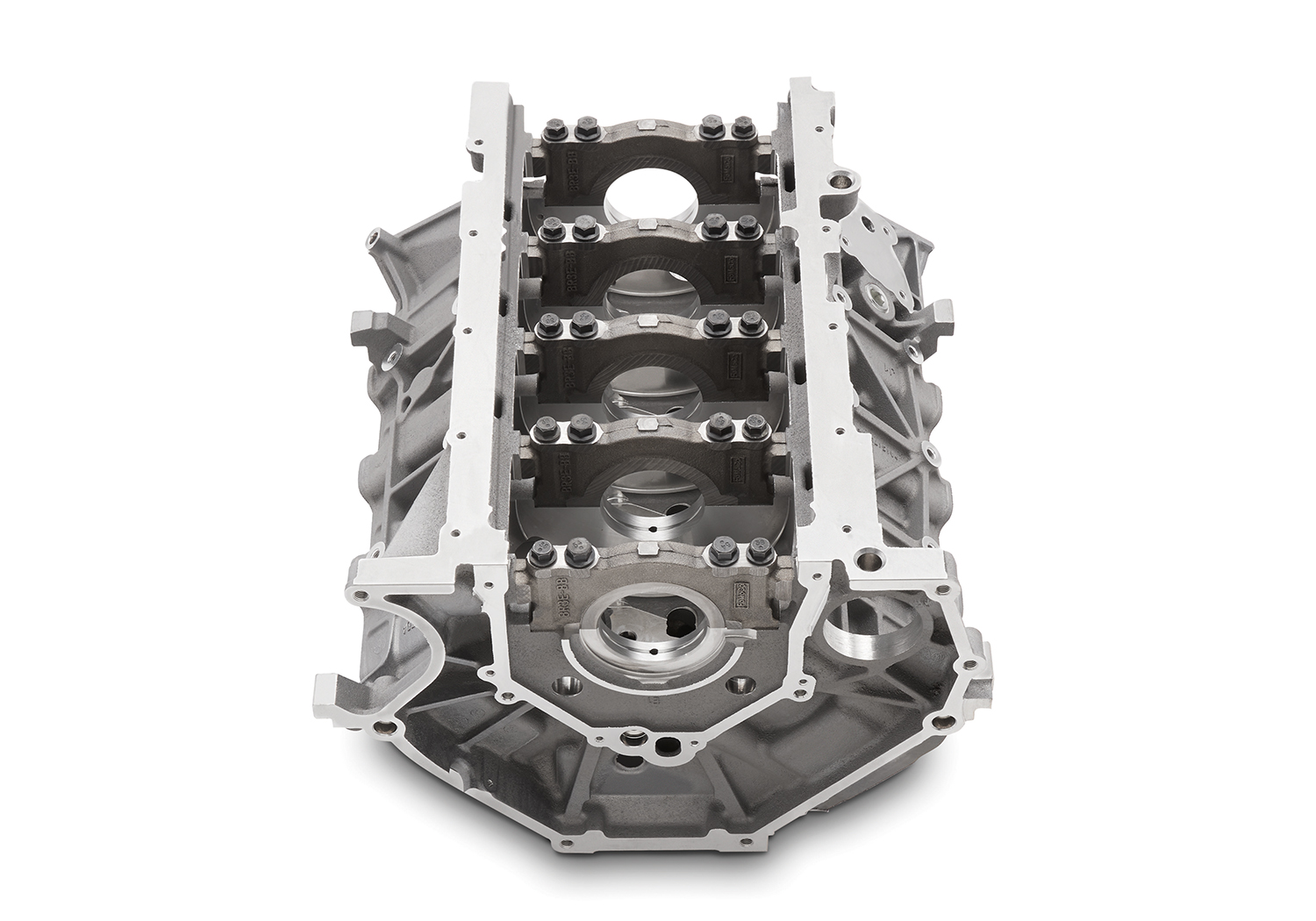

  • Cross-bolted nodular iron main bearing caps
  • Uses 12 mm cylinder head bolts
  • Block has provisions for piston oil squirters

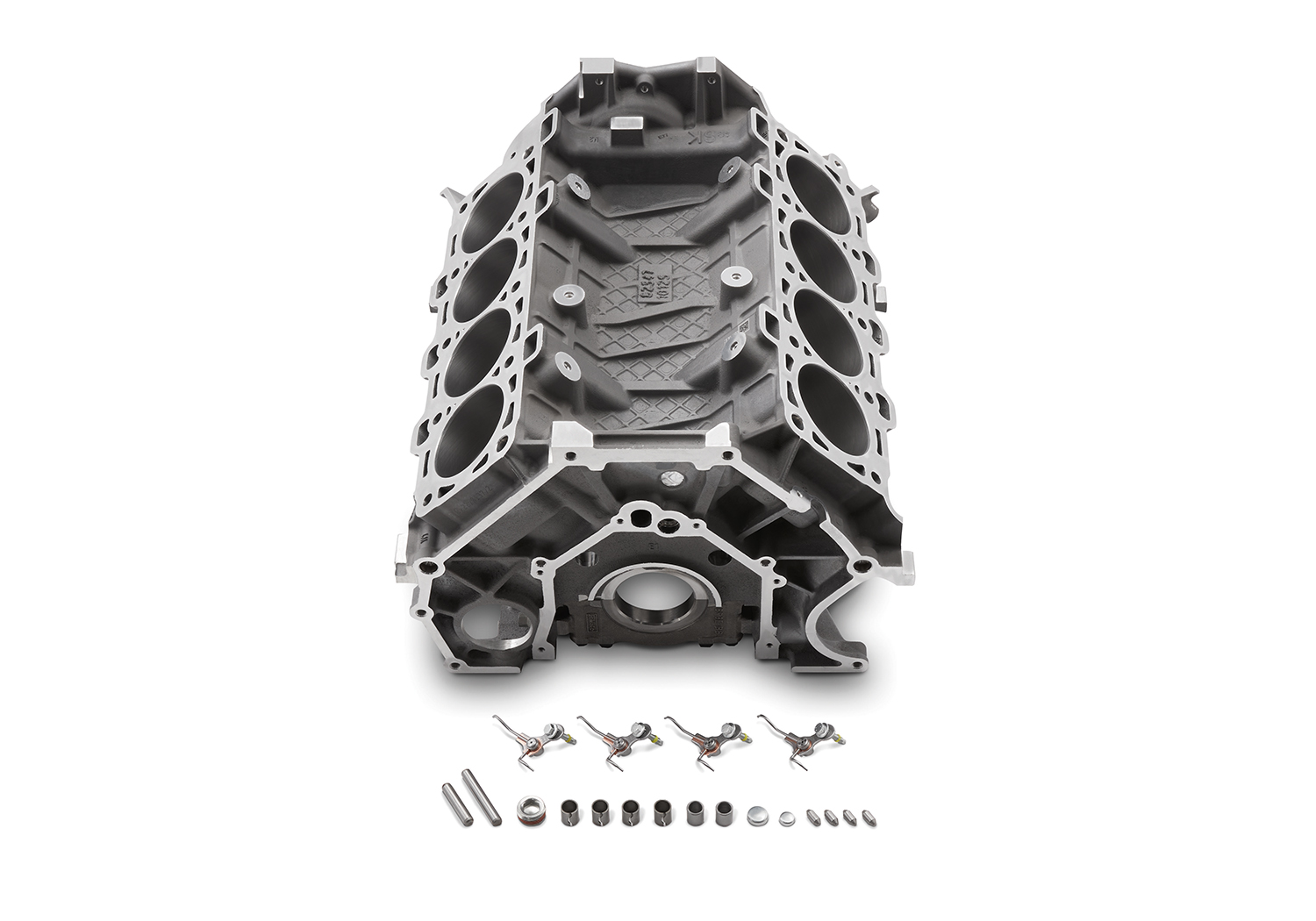

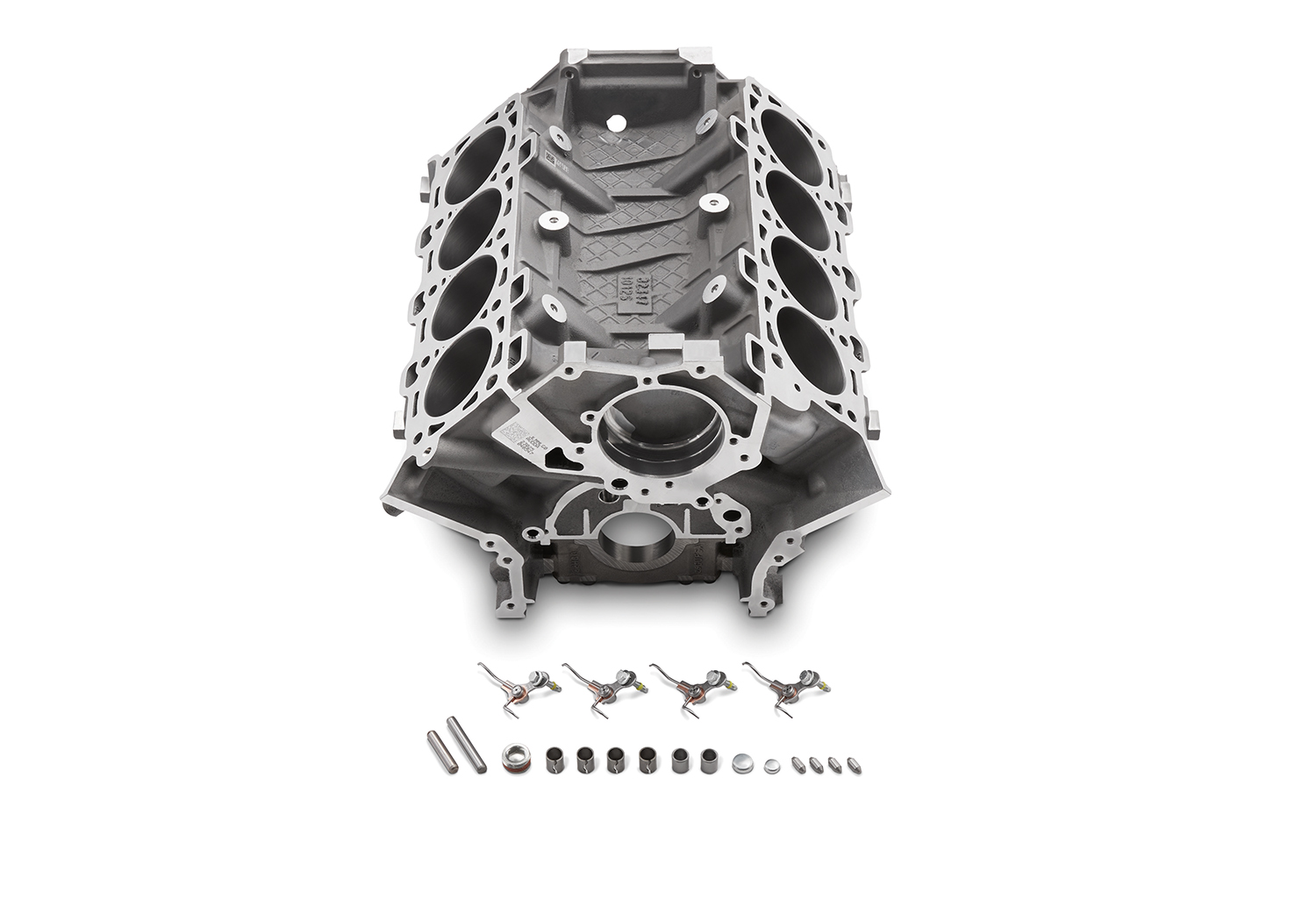

  • Includes plugs and dowels, and oil squirters
Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Package Dimensions
25" x 24" x 31"
Package Weight
113 lb(s)
UPC Code
756122012109
Country of Origin
Canada
