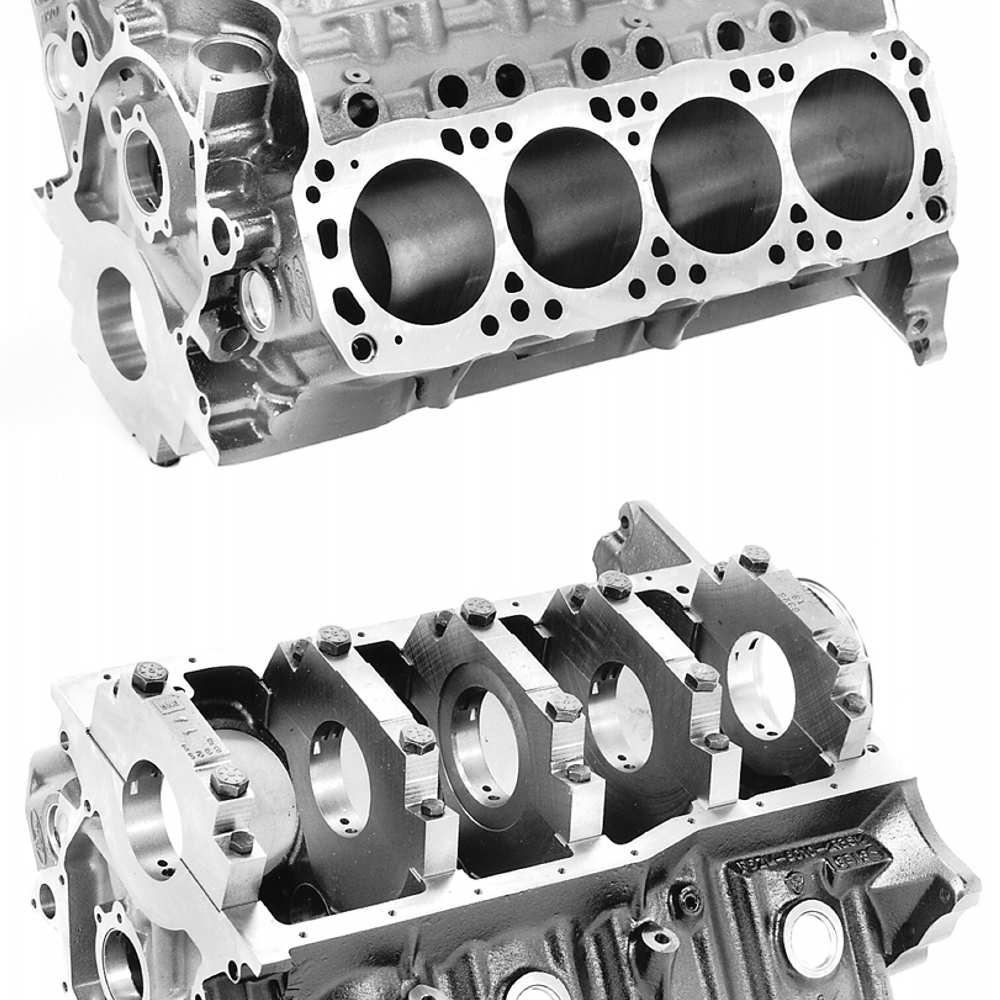

351 SIAMESE BORE DRY SUMP BLOCK

This part is no longer available.
351 SIAMESE BORE DRY SUMP BLOCK
M-6010-S351
Instruction Sheet
Not Available
    M-6010-S351* 9.500" Deck Height
  • Cast iron block with 4-bolt main caps and strengthened structural sections
  • Nodular iron main caps
  • Can be bored/stroked to produce 454 cu. in.
  • Siamese cylinder bores
  • Bore range from 4.000-4.125"
  • Dry sump oiling design
  • 2.749" main journal diameter (stock 351C size)
  • Weighs approximately 205 lbs.
  • For professional competition (Circle Track, Drag Racing)
  • Semi-finished lifter bores and main bearing bores – must be honed to fit
  • Uses common OD cam bearings M-6261-J351/R351. See page 55 NOTE: Siamese blocks are solid casting between the cylinder bores. There are no water passages between them.This is done to increase the strength of the block.
Part Type
Engine: Engine Blocks
Warranty Availability
Not Available
Package Dimensions
21.25" x 14.5" x 22.5"
Package Weight
226 lb(s)
UPC Code
756122601471
Country of Origin
United States
